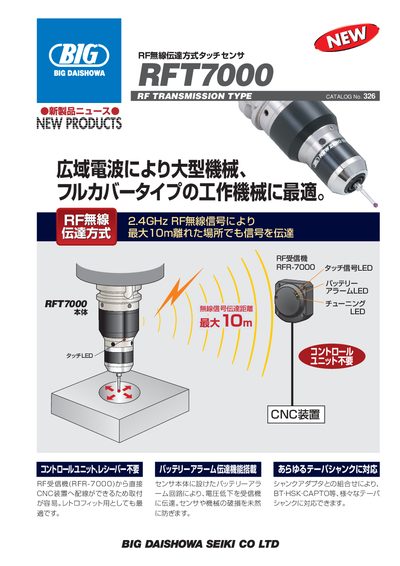

Daishowa RFT7000 Touch Sensor Manual
The RFT7000 is a wireless RF touch sensor designed for large‑scale CNC machines. It transmits touch signals via 2.4 GHz RF, allowing communication up to 10 m without a separate control unit. The sensor includes LED indicators for signal status and a battery‑powered alarm function.
The manual details the HF receiver (RFR‑7000) specifications, cable connections, optional stylus accessories, and mounting procedures. Wiring diagrams show how to connect the sensor directly to a CNC controller, and the document lists LED color codes and voltage requirements for proper operation. This manual is written in Japanese.
Covers: RF Wireless Transmission Touch Sensor · HF Receiver (RFR‑7000) Specifications · Cable and Connector Details · Optional Stylus (Separate Sale) · Installation Guidelines · Technical Specifications
Latest BIG manuals
BIG (STC Type )M2M30
Daishowa RFT7000 Touch Sensor Manual
User Manual 2 pages · 293 KB · JAThe Daishowa RFT7000 Touch Sensor manual provides installation, wiring, and specifications for wireless RF operation up to 10 m.
