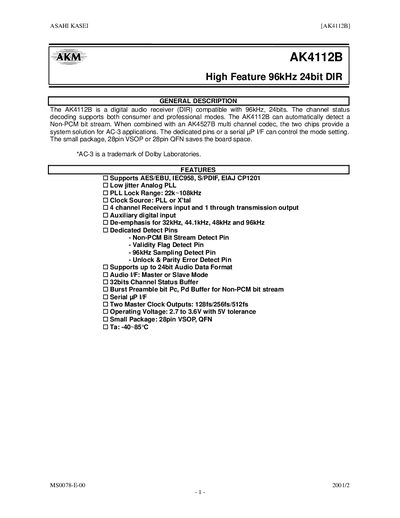

Asahi Kasei AK4112B Datasheet
The AK4112B is a digital audio receiver (DIR) that supports 96 kHz, 24‑bit audio and can decode both consumer and professional channel status. It offers four audio input channels, a through‑transmission output, and optional non‑PCM detection pins, making it suitable for AC‑3 and other multichannel audio applications.
Key features include low‑jitter analog PLL, multiple clock sources, master/slave audio interface modes, two master‑clock outputs, and a compact 28‑pin VSOP/QFN package. The datasheet details absolute maximum ratings, recommended operating conditions, pin assignments, and timing diagrams for both serial and parallel operation.
Covers: General Description · Features · Pin Layout · Pin/Function · Absolute Maximum Ratings · Recommended Operating Conditions

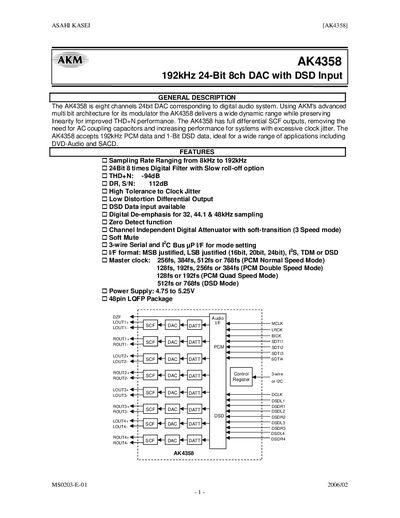

Asahi Kasei AK4358 Audio DAC Datasheet
The AK4358 is an eight‑channel, 24‑bit digital‑to‑analog converter (DAC) that supports PCM sampling rates from 8 kHz up to 192 kHz and 1‑bit DSD input. It features differential SCF outputs, a low‑distortion architecture, and a programmable digital attenuator.
The document provides full pin descriptions, absolute maximum ratings, recommended operating conditions, analog and digital performance characteristics, filter specifications, and timing diagrams for both PCM and DSD interfaces.
Covers: General Description · Features · Pin Layout · Pin/Function · Absolute Maximum Ratings · Recommended Operating Conditions
Latest ASAHI manuals
Asahi Kasei AK4112B Datasheet
Datasheet 34 pages · 293 KB · ENThe Asahi Kasei AK4112B datasheet provides specifications, pin functions, timing diagrams, and operating conditions for this 96 kHz 24‑bit digital audio…
Asahi Kasei AK4358 Audio DAC Datasheet
Datasheet 36 pages · 393 KB · ENTechnical specifications and pinout details for the Asahi Kasei AK4358 8‑channel 24‑bit audio DAC.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in ASAHI manuals
What is the operating temperature range of the AK4112B?
The device operates from –40 °C up to 85 °C.
How many audio channels does the AK4112B support?
It provides four channel receivers input and one through‑transmission output.
What is the recommended power‑supply voltage for the AK4358?
Both the analog (AVDD) and digital (DVDD) supplies should be between 4.75 V and 5.25 V.
What maximum sampling rate does the AK4358 support?
The device supports sampling rates up to 192 kHz.
