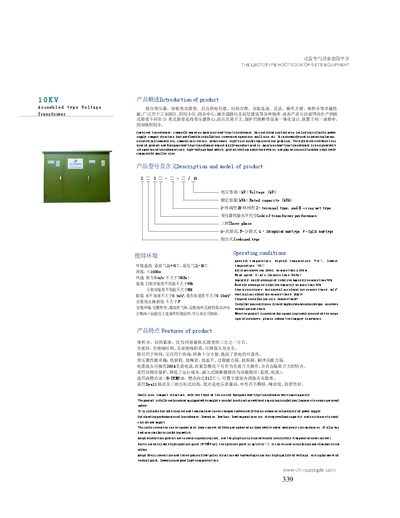

Z□S□-□-□/10 10kV Assembled Type Voltage Transformer User Manual
The 10kV assembled type voltage transformer, also called an American box‑type transformer, offers reliable power supply, compact structure, fast installation, and small size. It integrates the transformer core, high‑voltage load switch, and protective fuse in a sealed oil tank, making it about one‑third the volume of a comparable European box transformer.
Technical data include ambient temperature limits of +40 ℃ to –30 ℃, altitude up to 1 000 m, wind speed up to 34 m/s (≤700 Pa), humidity not exceeding 95 % (daily and monthly averages), and shock resistance of 0.4 m/s² horizontal and 0.15 m/s² vertical acceleration. The transformer supports a 200 A load current, uses double‑fuse protection, and operates with high‑ignition‑point R‑TEMP oil (ignition point 312 ℃). External dimensions for standard and reinforced models are listed in the document. This manual is written in Chinese.
Covers: Product Overview · Features · Operating Conditions · External Dimensions · Technical Parameters · Installation Guidelines
Latest 10KV manuals
Z□S□-□-□/10 10kV Assembled Type Voltage Transformer User Manual
User Manual 3 pages · 347 KB · ZHThe manual provides specifications, installation conditions, and features of the 10kV assembled type voltage transformer (model Z□S□-□-□/10).
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in 10KV manuals
What is the operating temperature range for the transformer?
The transformer can operate from a high of +40 ℃ down to a low of –30 ℃.
From: Z□S□-□-□/10 10kV Assembled Type Voltage Transformer User Manual
Can the transformer be used for both ring‑net and terminal applications?
Yes, the product is suitable for both ring‑net and terminal installations, allowing flexible conversion.
From: Z□S□-□-□/10 10kV Assembled Type Voltage Transformer User Manual
