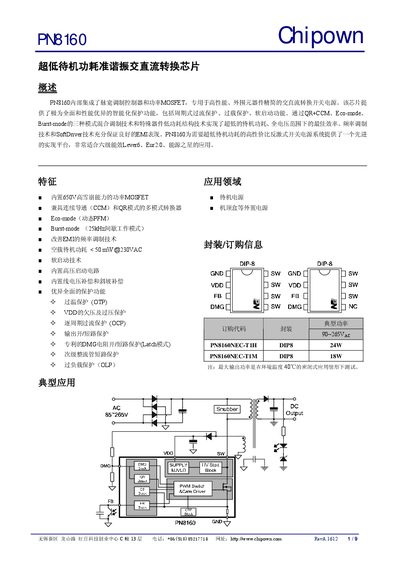

Chipown PN8160 Chip Datasheet
The PN8160 integrates a PWM controller and a 650 V avalanche‑rated power MOSFET for high‑performance, component‑reduced AC‑DC switching power supplies. It features comprehensive protection such as cycle‑by‑cycle over‑current, overload, soft‑start, over‑temperature, over‑voltage, and DMG latch protection, and supports QR+CCM, Eco‑mode, and Burst‑mode for ultra‑low standby power and optimal efficiency.
Typical applications include standby power supplies and external power for set‑top boxes. The device is offered in a DIP‑8 package (PN8160NEC‑T1H / PN8160NEC‑T1M) with ordering codes for 24 W and 18 W variants. Detailed electrical characteristics, pin definitions, and mechanical dimensions are provided for design integration. This manual is written in Chinese.
Covers: Overview · Features · Package / Ordering Information · Pin Definition · Typical Power · Electrical Characteristics

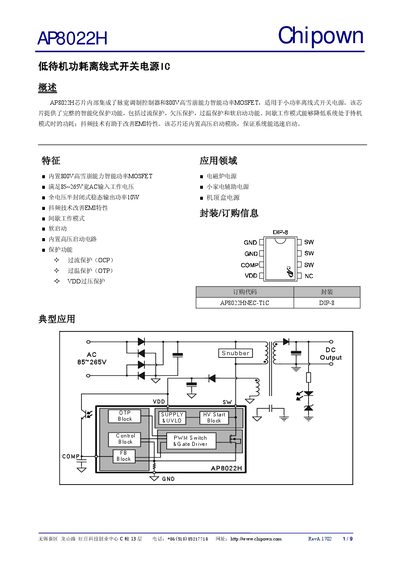

Chipown AP8022H Low Standby Power Offline Switching Power Supply IC Datasheet
The AP8022H is designed for low‑standby‑power offline switching power supplies, suitable for applications such as induction‑cooker power modules, small‑appliance auxiliary supplies and set‑top‑box power supplies. It integrates a PWM controller and an 800 V high‑avalanche‑capability smart power MOSFET in a DIP‑8 package.
Key features include built‑in over‑current (OCP), under‑voltage (UVLO), over‑temperature (OTP) and soft‑start protection, an intermittent‑work mode to reduce standby power, and a high‑voltage start circuit for rapid power‑up. The device operates from 85 V to 265 V AC input and delivers up to 10 W steady‑state output at 12 V. This manual is written in Chinese.
Covers: Overview · Package / Ordering Information · Pin Definition · Typical Power · Operating Limits · Electrical Characteristics
Chipown PN8147T Switching Power Supply Chip Datasheet
The PN8147T integrates a PWM controller and power MOSFET for high‑performance, component‑reduced AC/DC switching power supplies. It provides comprehensive protection features such as cycle‑adjustable over‑current, overload, over‑voltage, CS short‑circuit, and soft‑start, and supports Hi‑mode, Eco‑mode, and Burst‑mode power‑adjustment.
Designed for ultra‑low standby consumption (<50 mW at 230 VAC) and optimal efficiency across 85‑265 V AC, the chip includes an internal high‑voltage start‑up module and frequency‑modulation technology for good EMI performance. Typical applications include switch‑mode adapters, battery chargers, white‑goods auxiliary supplies, and smart meters. This manual is written in Chinese.
Covers: 概述 · 封装 / 订购信息 · 管脚定义 · 典型功率 · 电气特性 · 振荡器部分
