Featured UNIMAT manuals

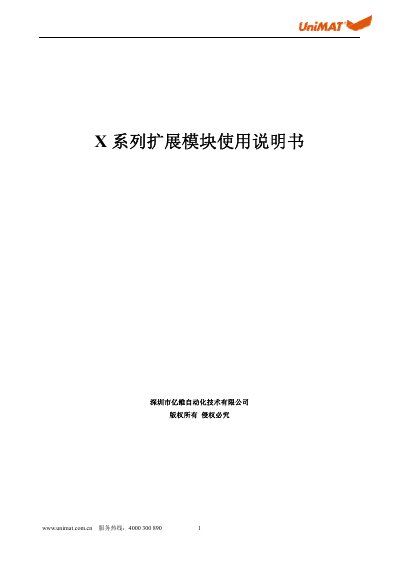

Unimat X Series Expansion Modules User Manual
This manual describes the X series expansion modules for Unimat PLCs, including digital, analog and temperature modules. It explains the module IDs, register maps, wiring diagrams and configuration procedures needed to integrate up to seven modules with the PLC.
The document also contains detailed product specifications for each module type (e.g., X‑E8X8YT‑00, X‑E8X8YR‑00), safety and reliability information, and guidance on calibrating temperature modules and using special registers. This manual is written in Chinese.
Covers: Company Profile · Product Overview · Module Information Summary · Module Model and Configuration · Usage Method and Module ID · Digital Modules
Unimat UT500 Variable Frequency Drive Selection Manual
The UT500 series variable‑frequency drives from Unimat focus on core control, offering high stability, precision and fast response for a wide range of industrial loads. The drives support vector control, PID control and V/F control, and include built‑in overload protection and environmental‑resistant designs.
The manual provides application solutions for compressors, fans, pumps, injection molding machines and other equipment, details wiring diagrams, installation dimensions, communication options (RS485 with MODBUS‑RTU and PROFIBUS‑DP) and a full list of configurable function parameters. This manual is written in Chinese.
Covers: Introduction · Product Features · Control Modes · Application Solutions · Wiring and Installation · Function Parameters
Latest UNIMAT manuals
Unimat X Series Expansion Modules User Manual
User Manual 70 pages · 1.3 MB · ZHThe Unimat X Series expansion modules user manual provides product overview, specifications, wiring diagrams and configuration instructions for digital…
Unimat UT500 Variable Frequency Drive Selection Manual
Product Leaflet 10 pages · 24.4 MB · ZHSelection manual for Unimat UT500 series variable frequency drives with features, specs and application solutions.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in UNIMAT manuals
How many expansion modules can be connected to an X series PLC?
Up to seven expansion modules can be attached to an X series PLC.
What is the format of a module ID?
A module ID consists of two bytes: the first byte indicates the module type and the second byte encodes flags for enable, I/O type, input and output counts.
What communication protocols does the UT500 support?
It supports RS485 communication with MODBUS‑RTU and PROFIBUS‑DP protocols.
From: Unimat UT500 Variable Frequency Drive Selection Manual
What overload capability does the UT500 have?
The drive can handle 150 % of rated current for 60 seconds, 180 % for 2 seconds, and 200 % instantaneous overload.
From: Unimat UT500 Variable Frequency Drive Selection Manual
