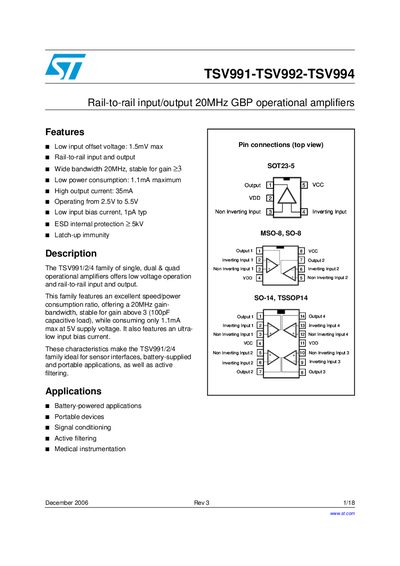

ST TSV991-TSV992-TSV994 Rail-to-rail input/output 20MHz GBP operational amplifiers Manual

Update: 28 September, 2023

The TSV991/2/4 family of single, dual & quad operational amplifiers offers low voltage operation and rail-to-rail input and output. This family features an excellent speed/power consumption ratio, offering a 20MHz gain-bandwidth, stable for gain above 3 (100pF capacitive load), while consuming only 1.1mA max at 5V supply voltage. It also features an ultra-low input bias current. These characteristics make the TSV991/2/4 family ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.

Brand: ST

File format: PDF

Size: 484 KB

MD5 Checksum: 5BCECD98AD31162567D6EF2D45A682DC

Publication date: 10 May, 2012

Downloads: -

PDF Link: ST TSV991-TSV992-TSV994 Rail-to-rail input/output 20MHz GBP operational amplifiers Manual PDF

Download
