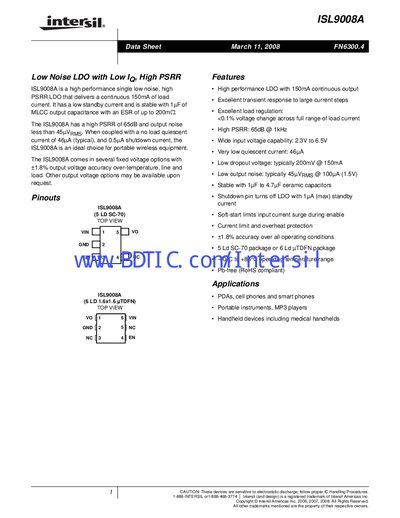

intersil ISL9008A handbook

Update: 30 September, 2023

The ISL9008A is a high-performance single low noise, high PSRR LDO that delivers a continuous 150mA of load current. It has a low standby current and is stable with 1μF of MLCC output capacitance with an ESR of up to 200mΩ. The ISL9008A has a high PSRR of 65dB and output noise less than 45μVRMS. When coupled with a no load quiescent current of 46μA (typical), and 0.5μA shutdown current, the ISL9008A is an ideal choice for portable wireless equipment. The ISL9008A comes in several fixed voltage options with ±1.8% output voltage accuracy over-temperature, line and load. Other output voltage options may be available upon request.

Brand: intersil

File format: PDF

Size: 223 KB

MD5 Checksum: 3208446D258BF37D403CA52A1AD3C6F0

Publication date: 28 March, 2012

Downloads: -

PDF Link: intersil ISL9008A handbook PDF

Download
